Features
Variable Speed Head Technology
Incorporating cutting-edge Variable Speed Head technology, allowing flexible control over machining operations with adaptable speed settings.
Spacious Table
Featuring an expansive 50" x 10" table, the machine provides a generous workspace for diverse machining tasks, accommodating various workpieces.
Powerful Motor
Driven by a robust 3HP motor, the machine ensures reliable and efficient performance, making it well-suited for a wide spectrum of machining applications.
Meehanite Castings
Constructed with precision Meehanite castings, the machine guarantees exceptional stability and durability, forming a sturdy foundation for precise machining operations.
Hardened and Ground Ways
The cross slide way and table undergo meticulous hardening and grinding processes, enhancing wear resistance and ensuring a smooth and precise machining experience.
Quill with Chrome Hardening
The quill undergoes chrome hardening and grinding, ensuring durability and precision, particularly in various drilling operations.
High-Precision Spindle Bearings
Equipped with high-precision 7207 CP4 spindle bearings, the machine ensures smooth and accurate rotation, contributing to superior machining results.
Turcite-B Coating
The cross and longitudinal ways are coated with Turcite-B, extending their lifespan and minimizing friction for seamless movement.
Specifications

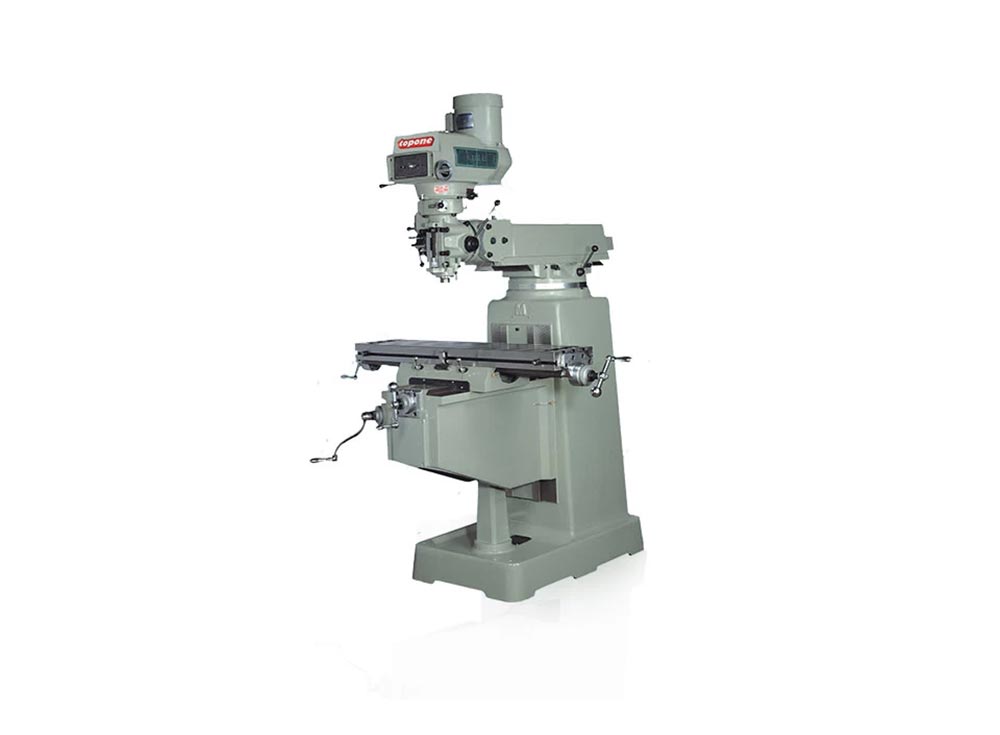

| Model | TOM-3VHG |
Spindle |
|
| Spindle taper |
R8 (NST30) |
| Spindle Speeds |
60-4200 RPM (Variable) |
| Quill diameter |
Ø85.725 mm (3.37") |
| Quill travel |
127 mm (5") |
| Quill feeds |
0.04 mm (0.0015") 0.08 mm (0.0030") 0.15 mm (0.0060") |
| Head tilt |
45° Forward & Back 90° Right & Left |
| Spindle motor |
3HP |
Table |
|
| Table size |
1270 x 254 mm (50" x 10") |
| Longitudinal travel (X) |
914 mm (36") |
| Cross travel (Y) |
406 mm (12") |
| Vertical trave (Z) |
406 mm (16") |
| T-solt (width x trough number x pitch) |
16 mm x 3 x 65 mm |
RAM |
|
| Ram travel |
610 mm (24") |
| Machine weight |
1280 Kg (2816 Lb) |
| Machine dimension (L x W x H) |
1750 x 1700 x 2200 mm |
| Packing dimension |
1500 x 1650 x 1980 mm |
*Note:The machine specifications,dimensions and design characteristics are subject to change without prior notice.
Standard Accessories
- One shot lubrication
- Draw bar
- Tools & tool box
- Operation manual
Optional Accessories
- Clamping kit set
- 6" angle vise
- Horizontal and vertical rotary table
- Power feed (X, Y, Z-axis)
- R8 collet set
- NST #30 arbor & collet
- NST #40 arbor & collet
- Work lamp
- Y-axies square way (3HG, 3VHG)
- Collant system
- Chip pan
- Right angle attachment
- Electric control box and panel
- Powered table elevation
- Ball screw (X, Y-axis)
- Digital readout system
