​Double Column Machining Center

Scientific Rib Reinforcement

All structural parts of Top-One's double column machining centers are internally reinforced with comprehensive heavy ribs to resist flex and minimize vibrations.

Massive, Stable Base

The base is manufactured from high quality Meehanite cast iron, tempered and stress relieved to ensure material tability without deformation year after year.

Scientific rib reinforcement combination with a greater span between linear ways provides solid support for heavy loads.

Large Internal Space

The extra wide distance between columns in combina-tion with extra long travel allows the machine to accom-modate large workpieces.

Large Diameter Ball Screws

The 3 axes traverses are driven by high performanceservo motors,which drive the ball screws, feature minimum backlash and long life.

Ball screws are pre-tensioned to assure high - transmission accuracy at all times.

Two Chip Augers On Base

Two chip augers are provided at the left and right side of the base, which deliver chips to the chip conveyor. The chip augers maintain machine cleanliness at all times

Ladder Type Linear Ways on Beam

The linear ways on the beam are supported by a ladder structure that upgrades stability of the spindle head.

The heavy duty roller type linear ways combined with three slide blocks on each linear way guarantee greater rigidity on the y-axis

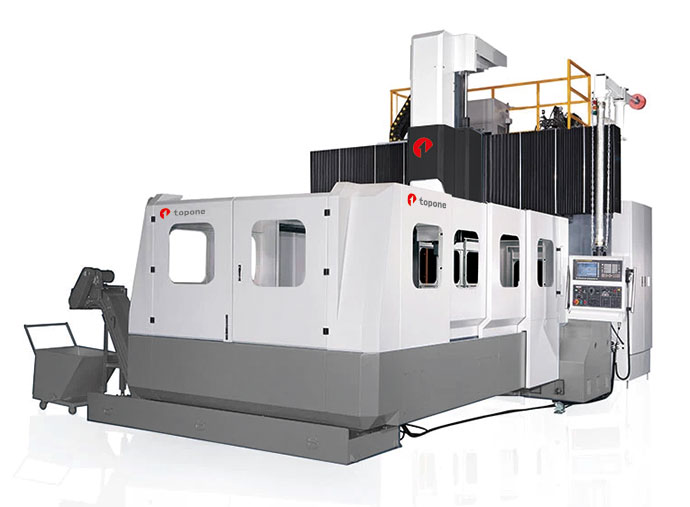

​​​SP Series
Double Column Machining Center

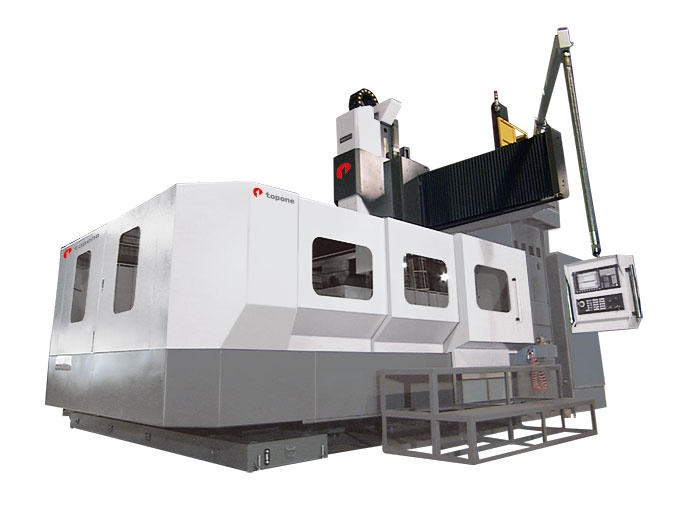

FS Series
Double Column Machining Center

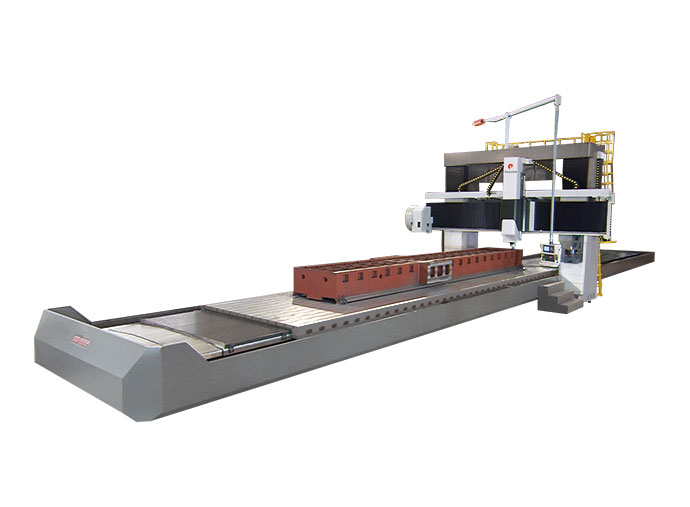

SK Series
Double Column Machining Center
