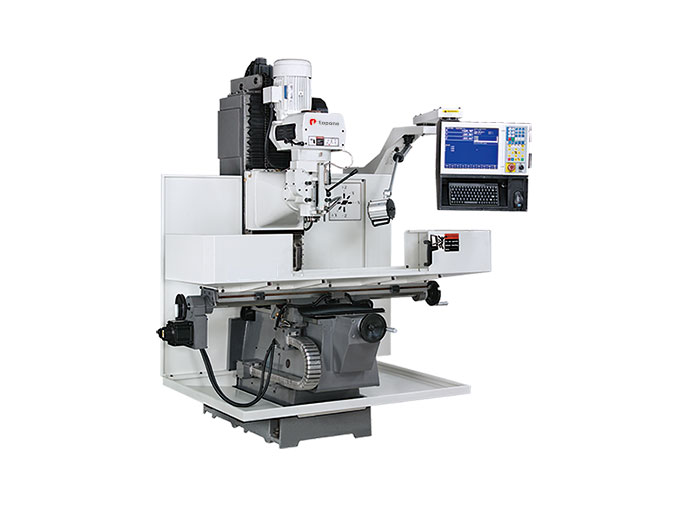

A2-5T / A3-5T

CNC Bed Mill
https://www.topone-m.com/web/image/product.template/18/image_1920?unique=3b34418

A robust machining solution with extended travel dimensions. It emphasizes precision with a carefully crafted guide way, Turcite-B coating, and double nut precision ball screws for accuracy and durability. The FC30 Meehanite casting main frame ensures long-term reliability, and the box ways design in the Y and Z axes maximizes stability during machining.

    This combination does not exist.

    Offering customized specifications for specific machining needs


    Features

    Travel Dimensions

    Boasting an extended range of 33.8" (X-axis), 19.6" (Y-axis), and 24" (Z-axis).

    Spindle Power

    Driven by a robust 3.7 kW (5HP) spindle motor for reliable and efficient performance.

    Spindle Taper and Speed

    Features NST40/NMTB40 spindle taper, with a spindle speed of 4,000 rpm and Hi-Logear for versatile machining applications.

    Precision Guide Way

    Meticulously crafted, the guide way is both hardened and ground, enhanced with Turcite-B coating for durability.

    Precision Ball Screws

    Equipped with double nut precision ball screws, providing high accuracy and prolonged operational life.

    Main Frame Construction

    Constructed from FC30 Meehanite casting, known for superior dampening qualities, with annealing and stress relief processes for long-term reliability.

    Box Ways Design

    The Y and Z axes feature a box ways design for maximum rigidity and stability during machining operations.

    Manual Quill Capability

    Added for greater flexibility in machining applications.

    Specifications

    Model A2-5T
    A3-5T
    Spindle motor
    5HP
    5HP
    Table
    10" x 54"
    13" x 60"
    X axis Travel
    32.28"
    39.37"
    Y axis Travel
    19.68"
    19.68"
    Z axis Travel
    24.01"
    24.01"
    Spindle taper
    NST40
    NST40
    Quill diameter
    Ø3.93"
    Ø3.93"
    Quill travel
    5"5"
    Spindle rpm (Lo)
    70~500 RPM
    70~500 RPM
    Spindle rpm (Hi)
    600~5000 RPM
    600~5000 RPM
    Table load capacity
    1100 Lb
    1100 Lb
    T-solt (W x N)
    0.62" x 3 x 2.55"
    0.62" x 3 x 2.55"
    Spindle nose to table top
    3.93" ~ 27.95"
    3.93" ~ 27.95"
    Saddle size
    20"
    47.2"
    Machine weight
    4550 Lb
    4600 Lb

    *Note:The machine specifications,dimensions and design characteristics are subject to change without prior notice.
