Features
Travel Dimensions
The machine offers a notable travel range of 28.74" (X-axis), 15.74" (Y-axis), and 19.68" (Z-axis).
Spindle Power
Driven by a potent 3.7 kW (5HP) spindle motor, ensuring robust performance.
Spindle Taper and Speed
Features an NT40 spindle taper, with a spindle speed of 4,000 rpm and Hi-Logear for versatile machining.
Precision Guide Way
The guide way is meticulously crafted, being both hardened and ground, and further enhanced with Turcite-B coating for durability.
Main Frame Construction
The main frame is constructed from FC30 Meehanite casting, known for its superior dampening qualities. The casting undergoes annealing and stress relief processes, ensuring long-term reliability.
Dovetail Ways
Utilizes dovetail ways in the X, Y, and Z axes for stability and precision in machining operations.
Lubrication System
Automatic lubrication system with metered check valves for efficient operation.
Coolant Management
Built-in coolant reservoir in the machine base for effective cooling.
Casting Certification
Certified Meehanite® machine casting ensures enhanced
Specifications

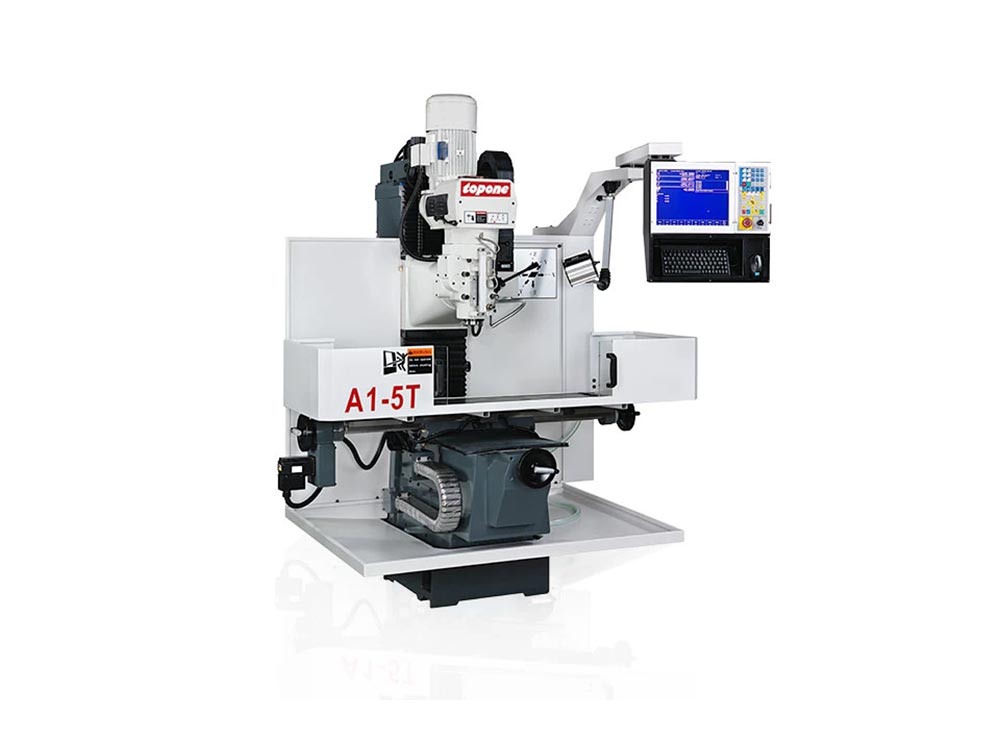

| Model | A1-5T |
| Spindle motor |
5HP |
| Table |
9" x 49" |
| X axis Travel |
28.34" |
| Y axis Travel |
15.74" |
| Z axis Travel |
19.68" |
| Spindle taper |
NT40 |
| Quill diameter |
Ø3.93" |
| Quill travel |
5" |
| Spindle rpm (Lo) |
70~500 RPM |
| Spindle rpm (Hi) |
600~5000 RPM |
| Table load capacity |
880 Lb |
| T-solt (W x N) |
0.62" x 3 x 2.55" |
| Spindle nose to table top |
3.93" ~ 23.62" |
| Saddle size |
20" |
| Machine weight |
3770 Lb |
*Note:The machine specifications,dimensions and design characteristics are subject to change without prior notice.
