Features

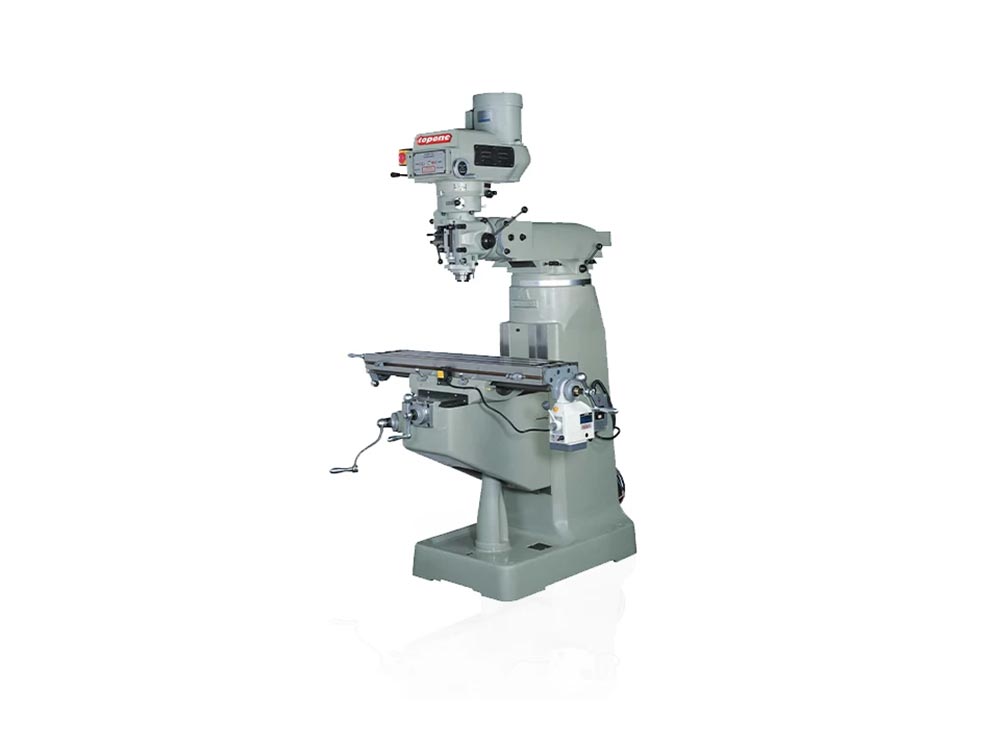

Variable Speed Head Technology
The machine incorporates a Variable Speed Head, providing flexibility and control over the machining operations with adaptable speed settings.
Spacious Table
With a substantial 42" x 9" table, the machine offers a generous workspace for diverse machining tasks, accommodating various workpieces.
Powerful Motor
Driven by a robust 3HP motor, the machine ensures reliable and efficient performance, suitable for a wide spectrum of machining applications.
Meehanite Castings
Constructed with Meehanite castings, the machine guarantees exceptional stability and durability, establishing a solid foundation for precise machining operations.
Hardened and Ground Ways
Both the cross slide way and table undergo hardening and grinding processes, enhancing wear resistance and facilitating smooth and precise machining.
Quill with Chrome Hardening
The quill undergoes chrome hardening and grinding, ensuring durability and precision during various drilling operations.
High-Precision Spindle Bearings
Featuring high-precision 7207 CP4 spindle bearings, the machine ensures smooth and accurate rotation, contributing to superior machining results.
Turcite-B Coating
The cross and longitudinal ways are coated with Turcite-B, prolonging their lifespan and minimizing friction for seamless movement.
Specifications
| Model | TOM-2VSG |
Spindle |
|
| Spindle taper |
R8 (NST30) |
| Spindle Speeds |
60-4200 RPM (Variable) |
| Quill diameter |
Ø85.725 mm (3.37") |
| Quill travel |
127 mm (5") |
| Quill feeds |
0.04 mm (0.0015") 0.08 mm (0.0030") 0.15 mm (0.0060") |
| Head tilt |
45° Forward & Back 90° Right & Left |
| Spindle motor |
3HP |
Table |
|
| Table size |
1067 x 230 mm (42" x 9") Standard 1244 x 230 mm (49" x 9") Optional |
| Longitudinal travel (X) |
762 mm (30") 914 mm (36") |
| Cross travel (Y) |
305 mm (12") |
| Vertical trave (Z) |
406 mm (16") |
| T-solt (width x trough number x pitch) |
16 mm x 3 x 64 mm |
RAM |
|
| Ram travel |
305 mm (12") |
| Machine weight |
1000 Kg (2200 Lb) |
| Machine dimension (L x W x H) |
1600 x 1450 x 2100 mm |
| Packing dimension |
1450 x 1450 x 1900 mm |
*Note:The machine specifications,dimensions and design characteristics are subject to change without prior notice.
Standard Accessories
- One shot lubrication
- Draw bar
- Tools & tool box
- Operation manual
Optional Accessories
- Clamping kit set
- 6" angle vise
- Horizontal and vertical rotary table
- Power feed (X, Y, Z-axis)
- R8 collet set
- NST #30 arbor & collet
- NST #40 arbor & collet
- Work lamp
- Collant system
- Chip pan
- Right angle attachment
- Electric control box and panel
- Powered table elevation
- Ball screw (X, Y-axis)
- Digital readout system
