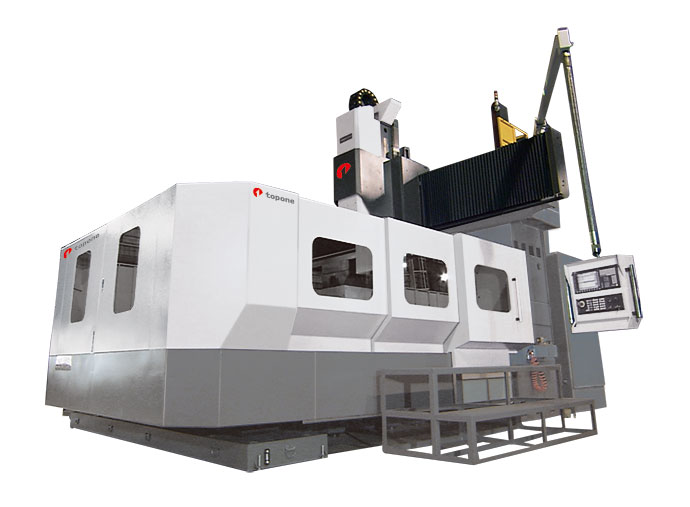

FS Series

Double Column Machining Center

Exceptional Performance: Double Column 5-Face CNC Machining Centers showcase outstanding rigidity, precision, high quality, reliability, and top-notch performance for heavy-duty cutting tasks.

Advanced Milling Head: Equipped with a high torque auto-dividing universal mill head, ensuring precision and efficiency in every machining operation.

Reliable Accuracy and Efficiency: Designed to deliver the accuracy and high efficiency expected, these machining centers uphold rigorous standards in every aspect of operation.

Tailored Solutions: Custom specifications are available to meet specific machining requirements, offering a personalized approach to address diverse customer needs.

Double Column 5-Face CNC Machining Centers exhibit outstanding rigidity , precision , high quality, reliable and performance. Each one is designed for heaving duty cutting and install the high torque auto-dividing universal mill head, and creates the accuracy and high efficiency you've come to expect.

To meet customers' specific machining requirements , custom specifications are available.

Catalog

Offering customized specifications for specific machining needs

Features

Ladder Type Linear Ways On Beam

The linear ways on the beam are supported by a ladder structure that upgrades stability of the spindle head.

The heavy duty roller type linear ways combined with three slide blocks on each linear way guarantee greater rigidity on they-axis.

Auto-Index Universal Milling Head

High rigidity , high torque and high speed. The head's B/C axis with accuracy indexing positions of 2.5*2.5 degrees is capable for large work-piece , precision and complicated mold.

UAG can accomplish 5 face and multi face machining work at one-time work-piece setup which can increase accuracy and effecincy of machining. It would be your best investment for increase producton capability.

Laser Inspection On Three Axes

Each machine is inspected using an advanced laser unit for calibration. The laser unit is applied for inspecting and calibrating the screw pitch error, backlash, positioning accuracy and repeatability.

The precision inspection may ensure the dynamic and static ability of the machine and its machining accuracy.

Cutting Capacity

Face Milling

Cutting tool	Ø125 x 8t
Tangential speed	295.35 m/min
Cutting width	120 mm
Cutting depth	4 mm
Cutting feed rate	140 mm/min
Cutting amount per tooth	0.27 mm
Material removal rate	756 mm
Workpiece material	S45C
Spindle load	80%

*Note: The above cutting test values are for reference only. The values may vary with customers cutting conditions.

Drilling

Tool diameter	Ø90 mm
Tool material	Tungsten Carbide
Cutting depth	100 mm
Cutting feed rate	5 mm/min
Workpiece material	SUS304
Spindle load	48%

*Note: The above cutting test values are for reference only. The values may vary with customers cutting conditions.

End Milling

Cutting tool	Ø32 x 8t
Tangential speed	158.6 m/min
Cutting width	6 mm
Cutting depth	20 mm
Cutting feed rate	120 mm/min
Cutting amount per tooth	0.21 mm
Material removal rate	187 cc/min
Workpiece material	Ø125 x 8t
Spindle load	65%

*Note: The above cutting test values are for reference only. The values may vary with customers cutting conditions.

Specifications

Model	FS-2203	FS-2204	FS-2205	FS-2206
X-axis travel	3000 mm	4000 mm	5000 mm	6000 mm
Y-axis travel	2100 mm
Z-axis travel	1200 (1400) mm
Table area	1800 x 3000 mm	1800 x 4000 mm	1800 x 5000 mm	1800 x 6000 mm
T-slot (no.-size x pitch)	9-22 x 200 mm
No. of linear ways / slide blocks	2 / 6	2 / 8	2 / 10	2 / 12
Max. table load	6t	10t	13t	16t
Distance between columns	2200 mm
Distance from spindle end to table	200~1400 (200~1600) mm
X travel for 250 mm face mill	2400 mm	3400 mm	4400 mm	5400 mm
Y travel for 250 mm face mill	1800 mm
Spindle nose taper / tool	ISO NO.50 BT-50 / DIN69872A
Spindle speed	60~3000 RPM
Spindle motor (30 min. rating. cont.)	45 / 37 kW
Max.torque	1150 Nm
B & C axis positioning indexing	B/C axis 2.5" x 2.5"
B & C axis index	B/C ±360°
3 axes servo motors (X/Y/Z)	7/7/7 kW	7/7/7 kW	6/7/7 kW	9/7/7 kW
X-axis rapid traverse	12000 mm/min	10000 mm/min	10000 mm/min	8000 mm/min
Y-axis rapid traverse	12000 mm/min	12000 mm/min	12000 mm/min	12000 mm/min
Z-axis rapid traverse	10000 mm/min	10000 mm/min	10000 mm/min	10000 mm/min
Cutting feedrate	6000 mm/min
Min cutting feed	0.001 mm/min
Tool magazine capacity	32 / 40 / 60 tools
Tools exchange time	8 sec (for arm type)
Max. tool dia. / empty adj. tool	Ø125 / Ø210 mm
Max. tool length	350 mm
Max. tool weight	12 / 25 Kg
Positioning accuracy	JIS B6338 :±0.01 / 300 / VDI3441: P0.035
Repeat accuracy	JIS B6338 :±0.003 / VDI3441: Ps0.03
CNC Controller	SIEMENS、FANUC
Connected electricity	60 KVA
Weight (about)	40 t	47 t	55 t	62 t

*Note:
- Due to continuous research and development, the machine design and specifications are subject to change without prior notice.
- Custom specifications are available upon request.

Model	FS-2703	FS-2704	FS-2705	FS-2706
X-axis travel	3000 mm	4000 mm	5000 mm	6000 mm
Y-axis travel	2600 mm
Z-axis travel	1200 (1400) mm
Table area	2200 x 3000 mm	2200 x 4000 mm	2200 x 5000 mm	2200 x 6000 mm
T-slot (no.-size x pitch)	11-22 x 200 mm
No. of linear ways / slide blocks	2 / 6	2 / 8	2 / 10	2 / 12
Max. table load	6t	10t	13t	19t
Distance between columns	2700 mm
Distance from spindle end to table	200~1400 (200~1600) mm
X travel for 250 mm face mill	2400 mm	3400 mm	4400 mm	5400 mm
Y travel for 250 mm face mill	2200 mm
Spindle nose taper / tool	ISO NO.50 BT-50 / DIN69872A
Spindle speed	60~3000 RPM
Spindle motor (30 min. rating. cont.)	45 / 37 kW
Max.torque	1150 Nm
B & C axis positioning indexing	B/C axis 2.5" x 2.5"
B & C axis index	B/C ±360°
3 axes servo motors (X/Y/Z)	7/7/7 kW	9/7/7 kW	9/7/7 kW	9/7/7 kW
X-axis rapid traverse	12000 mm/min	10000 mm/min	10000 mm/min	8000 mm/min
Y-axis rapid traverse	12000 mm/min	12000 mm/min	12000 mm/min	12000 mm/min
Z-axis rapid traverse	10000 mm/min	10000 mm/min	10000 mm/min	10000 mm/min
Cutting feedrate	6000 mm/min
Min cutting feed	0.001 mm/min
Tool magazine capacity	32 / 40 / 60 tools
Tools exchange time	8 sec (for arm type)
Max. tool dia. / empty adj. tool	Ø125 / Ø210 mm
Max. tool length	350 mm
Max. tool weight	12 / 25 Kg
Positioning accuracy	JIS B6338 :±0.01 / 300 / VDI3441: P0.035
Repeat accuracy	JIS B6338 :±0.003 / VDI3441: Ps0.03
CNC Controller	SIEMENS、FANUC
Connected electricity	60 KVA
Weight (about)	44 t	51 t	58 t	65 t

*Note:
- Due to continuous research and development, the machine design and specifications are subject to change without prior notice.
- Custom specifications are available upon request.

Model	FS-3204	FS-3205	FS-3206
X-axis travel	4000 mm	5000 mm	6000 mm
Y-axis travel	3100 mm
Z-axis travel	1200 (1400) mm
Table area	2700 x 4000 mm	2700 x 5000 mm	2700 x 6000 mm
T-slot (no.-size x pitch)	13-28 x 200 mm
No. of linear ways / slide blocks	3 / 8	3 / 10	3 / 12
Max. table load	16t	20t	24t
Distance between columns	3200 mm
Distance from spindle end to table	200~1400 (200~1600) mm
X travel for 250 mm face mill	3400 mm	4400 mm	5400 mm
Y travel for 250 mm face mill	2700 mm
Spindle nose taper / tool	ISO NO.50 BT-50 / DIN69872A
Spindle speed	60~3000 RPM
Spindle motor (30 min. rating. cont.)	45 / 37 kW
Max.torque	1150 Nm
B & C axis positioning indexing	B/C axis 2.5" x 2.5"
B & C axis index	B/C ±360°
3 axes servo motors (X/Y/Z)	9/7/7 kW	9/7/7 kW	14/7/7 kW
X-axis rapid traverse	10000 mm/min	10000 mm/min	8000 mm/min
Y-axis rapid traverse	12000 mm/min	12000 mm/min	12000 mm/min
Z-axis rapid traverse	10000 mm/min	10000 mm/min	10000 mm/min
Cutting feedrate	6000 mm/min
Min cutting feed	0.001 mm/min
Tool magazine capacity	32 / 40 / 60 tools
Tools exchange time	8 sec (for arm type)
Max. tool dia. / empty adj. tool	Ø125 / Ø210 mm
Max. tool length	350 mm
Max. tool weight	12 / 25 Kg
Positioning accuracy	JIS B6338 :±0.01 / 300 / VDI3441: P0.035
Repeat accuracy	JIS B6338 :±0.003 / VDI3441: Ps0.03
CNC Controller	SIEMENS、FANUC
Connected electricity	60 KVA	60 KVA	65 KVA
Weight (about)	56 t	63 t	70 t

*Note:
- Due to continuous research and development, the machine design and specifications are subject to change without prior notice.
- Custom specifications are available upon request.

Model	FS-3704	FS-3705	FS-3706
X-axis travel	4000 mm	5000 mm	6000 mm
Y-axis travel	3600 mm
Z-axis travel	1200 (1400) mm
Table area	3200 x 4000 mm	3200 x 5000 mm	3200 x 6000 mm
T-slot (no.-size x pitch)	15-28 x 200 mm
No. of linear ways / slide blocks	3 / 8	3 / 10	3 / 12
Max. table load	18t	23t	28t
Distance between columns	3700 mm
Distance from spindle end to table	200~1400 (200~1600) mm
X travel for 250 mm face mill	3400 mm	4400 mm	5400 mm
Y travel for 250 mm face mill	3200 mm
Spindle nose taper / tool	ISO NO.50 BT-50 / DIN69872A
Spindle speed	60~3000 RPM
Spindle motor (30 min. rating. cont.)	45 / 37 kW
Max.torque	1150 Nm
B & C axis positioning indexing	B/C axis 2.5" x 2.5"
B & C axis index	B/C ±360°
3 axes servo motors (X/Y/Z)	9/7/7 kW	14/7/7 kW	14/7/7 kW
X-axis rapid traverse	10000 mm/min	10000 mm/min	8000 mm/min
Y-axis rapid traverse	12000 mm/min	12000 mm/min	12000 mm/min
Z-axis rapid traverse	10000 mm/min	10000 mm/min	10000 mm/min
Cutting feedrate	6000 mm/min
Min cutting feed	0.001 mm/min
Tool magazine capacity	32 / 40 / 60 tools
Tools exchange time	8 sec (for arm type)
Max. tool dia. / empty adj. tool	Ø125 / Ø210 mm
Max. tool length	350 mm
Max. tool weight	12 / 25 Kg
Positioning accuracy	JIS B6338 :±0.01 / 300 / VDI3441: P0.035
Repeat accuracy	JIS B6338 :±0.003 / VDI3441: Ps0.03
CNC Controller	SIEMENS、FANUC
Connected electricity	60 KVA	65 KVA	65 KVA
Weight (about)	61 t	69 t	77 t

*Note:
- Due to continuous research and development, the machine design and specifications are subject to change without prior notice.
- Custom specifications are available upon request.

Standard Accessories

Nicolas Correa UDG
Halogen work light
Controller operation manual and electric circuit drawing
Operation and maintenance manual
Service tool
Leveling bolts and blocks
RS-232 interface
Program finished warning lamp
Automatic power-off device
Air gun for removing chips
Forced automatic lubrication system
Air system
Z-axis hydraulic counter-balancing system
Nitrogen gas counter-balancing system
Spindle oil cooler
Coolant pump and tank
Crawler chip conveyor with chip bucket
Ship augers (at both sides)
Semi-enclosed splash guard
Machine accuracy inspection report

Optional Accessories

Auxiliary tool stand
NC rotary table
Automatic tool setting device
Computerized scanning imitative system
Liner scale feedback
Oil water separating tank
Coolant through spindle
